A stackable solid structure
Interlocking concrete blocks
Westbay Concrete’s Interlocking Concrete Blocks are a stackable pre-cast solution, allowing you to construct safer and stable structures. These structures can be either temporary or permanent, with the interlocking design making it easy to disassemble and reconstruct.

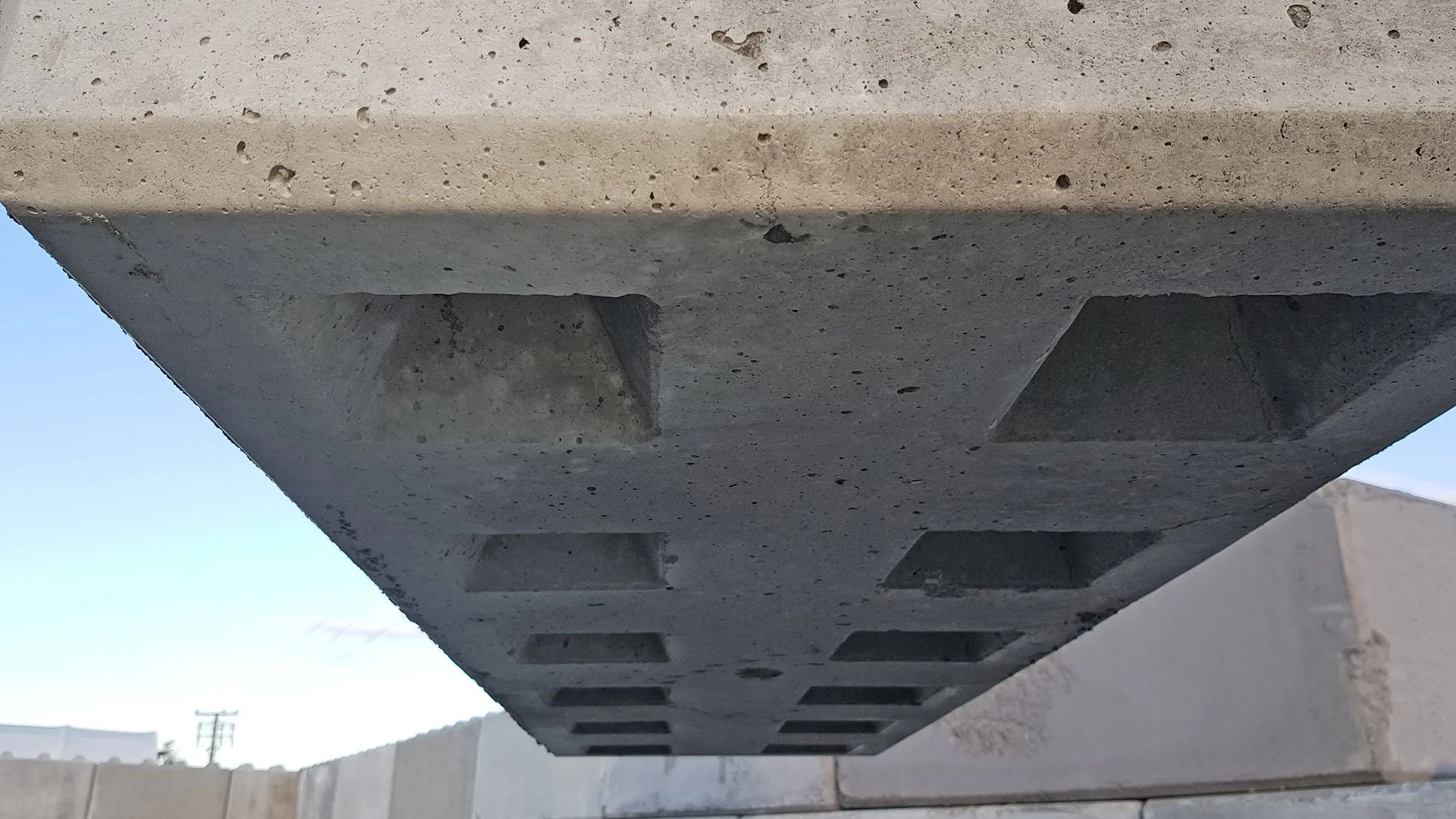

The unique interlocking system allows the blocks to self align for a safer and time-saving installation. The four sizes allow for endless, unique possibilities.
Create a structure in a timely and safe manner that will stand the test of time.
Note: One face is hand trowelled and may have some small imperfections. Some recycled concrete may vary slightly in colour
Lifting the blocks
Swift Lift Pins
All of our blocks utilise a Swift Lift design that enables a speedy solution to lift the blocks, safely into place.
For our Standard range, the 600 Block, 1200 Block and 1800 Block use a 2.5 tonne Swift Lift Pin, while the 2400 Block uses a 5 tonne Swift Lift Pin.
For our Mega range, both the 800 Block and 1600 Block use a 5 tonne Swift Lift Pin.
For our Custom range, both the Roofed 1800 Block and Slanted 2400 Block use a 5 tonne Swift Lift Pin.
Lifting Clutches and Chains
We have Swift Lift Clutches and certified lifting chains available for purchase/hire.
Transportation
The blocks can be transported on standard trailers, taking into consideration the mass of the blocks. Larger orders are typically on Flat-Deck Truck Trailers.
We have facilities available to load the blocks out of Westbay Concrete.
Standard range
Standard 600 Block
Block dimensions:
600 L x 600 W x 600 H
Approx weight: 0.5t
2.5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
Standard 1200 Block
Block dimensions:
1200 L x 600 W x 600 H
Approx weight: 1t
2.5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
Standard 1800 Block
Block dimensions:
1800 L x 600 W x 600 H
Approx weight: 1.5t
2.5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
Standard 2400 Block
Block dimensions:
2400 L x 600 W x 600 H
Approx weight: 2t
5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
Mega range
Mega 800 Block
Block dimensions:
800 L x 800 W x 800 H
Approx weight: 1.25t
5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
Mega 1600 Block
Block dimensions:
1600 L x 800 W x 800 H
Approx weight: 2.5t
5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
Custom range

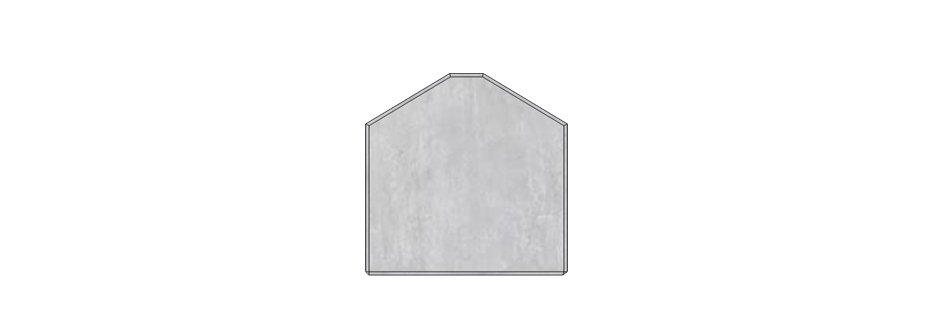

Custom Roofed
1800 Block
Block dimensions:
1800 L x 600 W x 600 H
Approx weight: 1.4t
2.5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
Custom Slanted
2400 Block
Block dimensions:
2400 L x 600 W x 600 H
Approx weight: 1.5t
5t Swift Lift Pin
Front View
Side View
Top View
Bottom View
